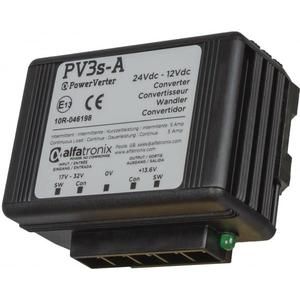

OMVORMER PV3S-A 24V -> 12V CONTINUE 3A / PERIODIEK 6A DUAL OUTPUT NON-ISOLATED (1ST)

Input voltage range 17-32Vdc
Output voltage 13.6Vdc +15% -20% at extremes of temperature, load, input tolerance, etc.
Output Power As stated, from either output or combination of both. intermittent ratings as stated, taken for a maximum of 2 minutes followed by 8 minutes rest.
Transient voltage protection Meets ISO7637-2 International standard for 24Vdc commercial vehicles
Electrostatic voltage protection Meets ISO10605, ISO14892, >8kV contact, 15kV discharge
Output noise <50mV pk-pk at continuous load. Meets CISPR25 and VDE0879-3
Off load current (quiescent current) <15mA
Power conversion efficiency Typically: 90%
Operating temperature -25ºC to +30ºC to meet this specification table
+30ºC to +80ºC de rate linearly to 0A
Storage temperature -25ºC to +100ºC
Operating humidity 95% max., non-condensing
Casework Anodised aluminium, glass filled polycarbonate, dust water and impact resistance to IP533
Connections Five 6.3mm push-on flat blade connectors
6-way 070 connector (PV12s-A)
Output indicator Green LED adjacent to output terminals. None on PV12s-A
Mounting method ‘Click ‘n’ fit mounting clip, fitted separately using three hole fixture
Safe area protection:
Over current
Limited by current sensing circuit
Over heat Limited by temperature sensing circuit
Transients Protected by filters and rugged component selection
Catastrophic protection Protected by internal input and output fuses
Approvals 2014/30/EC The general EMC directive
Regulation 10 The automotive directive
93/68/EEC The CE marking directive
Markings CE and E (automotive) marked

Geschikt voor:
24V>12V
