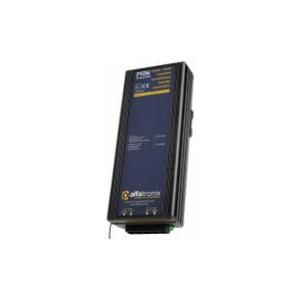

OMVORMER PV24I 24V -> 12V CONTINUE 24A / PERIODIEK 30A ISOLATED (1ST)

Technische Info:
Input voltage range 17-32Vdc
Output voltage 13.6Vdc +15% -20% at extremes of temperature, load, input tolerance, etc.
Intermittent output power As stated, taken for a maximum of 2 minutes followed by 8 minutes rest
Transient voltage protection Meets ISO7637-2 International standard for 24Vdc commercial vehicles
Electrostatic voltage protection Meets ISO10605, ISO14982, >8kV contact, 15kV discharge
Output noise <50mV pk-pk at continuous load. Meets CISPR25.
Off load current (quiescent current) <15mA
Power conversion efficiency Typically: 90% for non-isolated units, 85% for isolated units, *95%
Isolation >400Vrms between input, output and case, on isolated products only
Operating temperature -25°C to +30°C to meet this specification table
+30°C to +80°C de rate linearly to 0A
Storage temperature -25°C to +100°C
Operating humidity 95% max., non-condensing
Casework Anodised aluminium, glass filled polycarbonate, dust water and impact resistance to IP533
Connections Four 6.3mm push-on flat blade connectors *(5 way Phoenix connector including enable on/off
terminal and mating half)
Output indicator Green LED adjacent to output terminals
Mounting method Click ‘n’ fit mounting clip, fitted separately using three hole fixture * 4 hole cradle
Safe area protection: Over current
Over heat
Transients
Catastrophic protection
Limited by current sensing circuit
Limited by temperature sensing circuit
Protected by filters and rugged component selection
Protected by internal input and output fuses
Approvals 2014/30/EU The general EMC directive
Regulation 10 The automotive directive
93/68/EEC The CE marking directive
Designed to EN50498, ISO 7637-2, ISO 11452-1, ISO 14982, EN12895, EN60945, EN55022, FCC15B.
Markings CE and E (automotive) marked

Geschikt voor:
24V>12V
